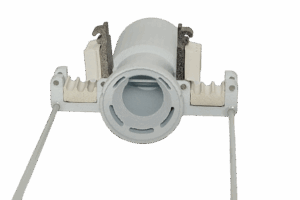

MRI compaitble holder with anethesia gas input port and exhaust ports for mouse model imaging.

Two versions are available:

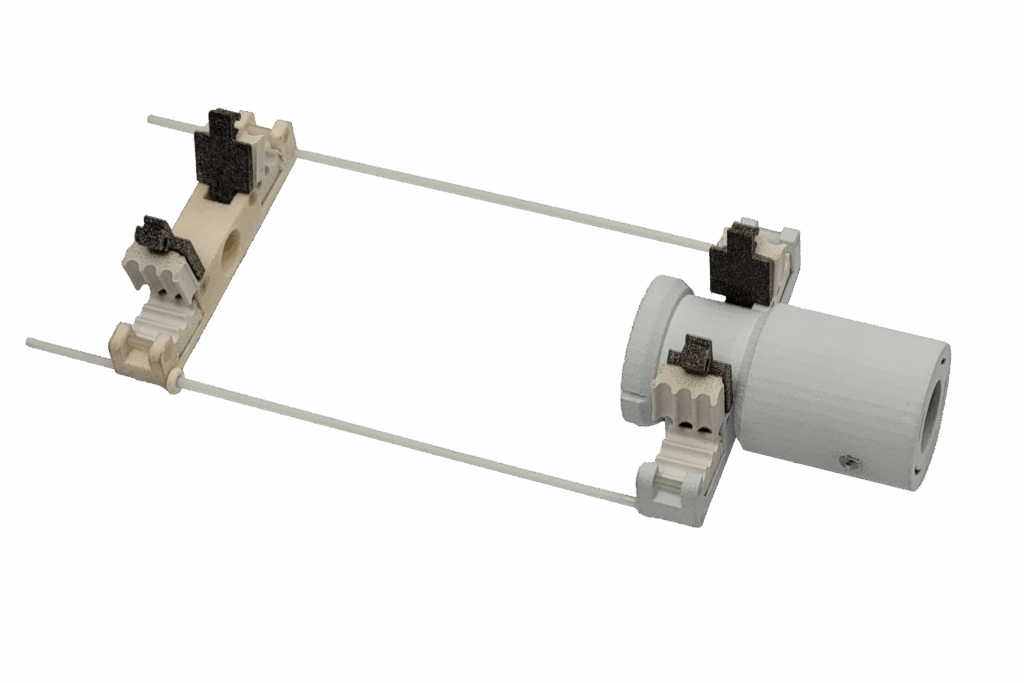

• Short – Whole body imaging

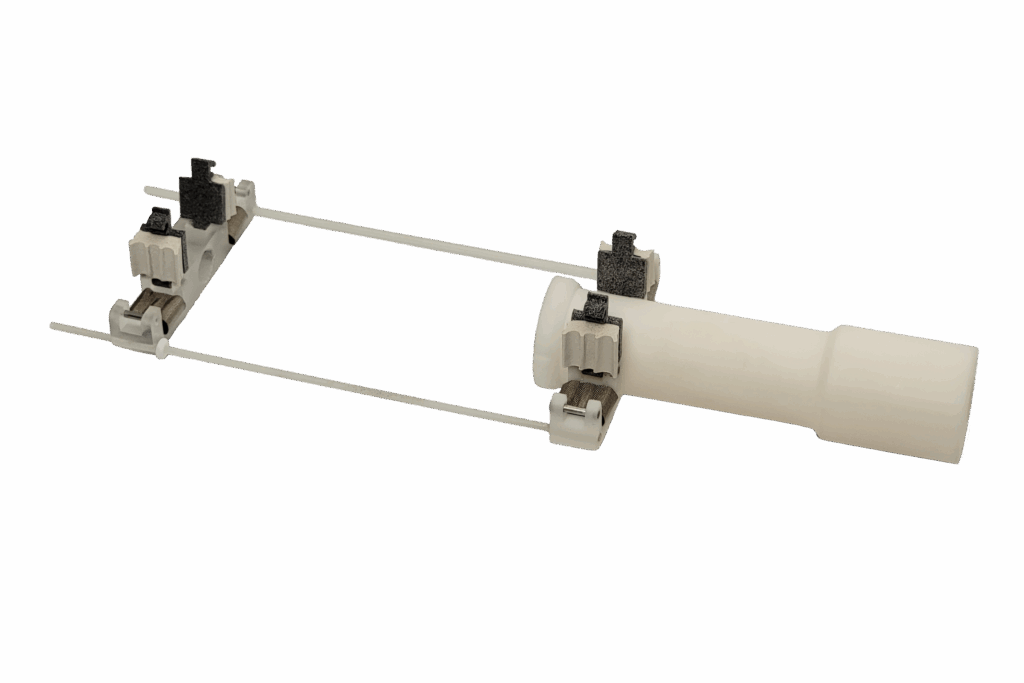

• Long – Brain Imaging

Features include:

• “Diving Bell” design to ensure an air bubble for mouse respiration during imaging in water.
• Padded arm/foot clasps for securing mouse limbs to restrainer.

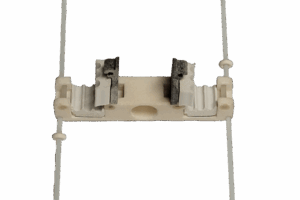

• Leg restrainer position can be adjusted and includes a feed-throug hole for the mouse tail.
• Integrated bite bar to hold mouse head in place during imaging.
• Newest version is MRI compatible.

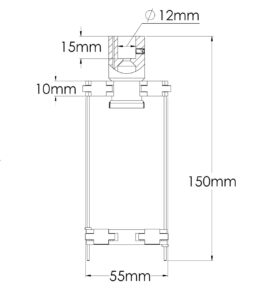

• Short – 5.5 cm wide x 15 cm tall, Main tube is ~5 cm tall
• Long – 5.5 cm wide x 19 cm tall, Main tube is ~9 cm tall
• Nylon body/tube and fiberglass rods

• For use with TriTom imaging system, MoleculUS, and other photoacoustic systems using the Legion ADC or Legion ADC HD
