Description

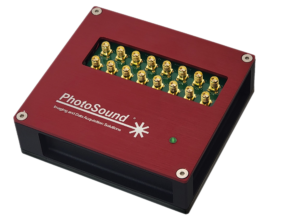

The Flash ADC is a complete data acquisition unit optimized for photoacoustic microscopy and scanning applications as the highest priority. The unit provides close to 100% duty cycle, a 125MS/s sampling rate, as well as 16-bit accuracy and a preamplifier. Key features include a noise-reducing variable gain amplifier, low power consumption, and compact size.
Features
- A 125MSPS sampling rate
- 16-bit accuracy
- Noise-reducing variable gain amplifier
- Lowe power consumption
- Compact size
Specifications
- Low-noise amplifier (LNA) with 50 Ω passive input termination, AC coupling
- Programmable gain: 21 dB, 18 dB, and 15 dB
- Linear input amplitude: 0.37/0.5/0.71 VPP
- Maximum analog input amplitude: 2 Vpp (power ON)
- Voltage Controlled Attenuator (VACT)
- Attenuation Range: 0 dB – 36 dB
- Total ADC gain g to 48 dB
- Programmable gain amplifier (PGA):
- 18 dB–27 dB in Steps of 3 dB
- 3rd-Order, 10 ~ 60 MHz Low-pass filter (LPF)
- ADC Idle-Channel SNR:
- 16-Bit, 125 Msps Mode: 80 dBFS
- 34 dB preamplifier with 2.2 MΩ input resistance and analog bandwidth exceeding 60 MHz
- PC connection via QSFP+ port (custom configuration)
Applications
- photoacoustic microscopy
- scanning applications
Downloads

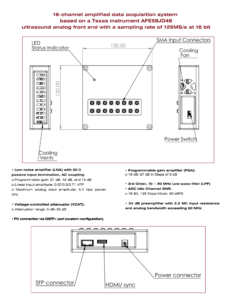

Datasheet
